Basics

Finding a shortest path between two nodes of a graph is an important problem that has many practical applications. For example, a natural problem related to a road network is to calculate the shortest possible length of a route between two cities, given the lengths of the roads.

Unweighted Graph​

Algorithm​

In an unweighted graph, the length of a path equals the number of its edges, and we can simply use breadth-first search to find a shortest path.

Implementation​

Unweighted Graph

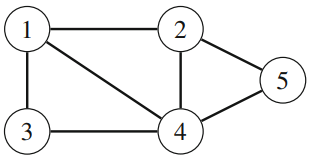

Fig. 1: Unweighted Graph

Suppose, in graph (Fig. 1) we have to find shortest distance between node 1 and node 5. We will traverse the graph using BFS taking node 1 as root node and store depth of nodes (from root node 1) in depth[i].

queue<int> q;
bool visited[N];
int distance[N];
// x : starting node of path (root node)
visited[x] = true;
depth[x] = 0;
q.push(x);
while (!q.empty()) {
    int s = q.front(); q.pop();
    // process node s
    for (auto u : adj[s]) {
        if (visited[u]) continue;
        visited[u] = true;
        depth[u] = depth[s]+1;
        q.push(u);
    }
}
// y : ending node of path
cout << depth[y] << endl;
